3 Parameters of the Operating Model (OM)
The OM is comprised of three required objects in S4 format:
- Life history object (
LifeHistoryObj) - Historical fishery object (
HistFisheryObj) - Time-area object (
TimeAreaObj)
Optional:
- Stochastic object (
StochasticObj)
Each of these S4 objects contains a specific number of slots, which can be accessed using the slotNames() function. These slots are populated within R. The simplest way to start building the OM is to create a new object using the R function new() and populate it with the required input information and parameters. The first step, before populating the slots of each object, is to create a new object using the new() function.
3.1 Time area object
The TimeAreaObj object holds temporal and spatial elements of the operating model, including descriptions of time steps, growth-type groups (GTGs), and spatial area parameters. The FishSimGTG package allows the user to model migration between multiple areas.
To create a new object of class TimeArea, use the new() function as follows:
To populate the slots of the TimeAreaObj object, the user should start by defining a meaningful title (title). Similar to the other S4 objects, the slot names of the TimeAreaObj can be viewed using the slotNames() function, and the user can access the help file using the ? symbol.
## [1] "title" "gtg" "areas"
## [4] "recArea" "move" "iterations"
## [7] "historicalYears" "historicalBio" "historicalBioType"
## [10] "historicalEffort"TimeAreaObj@title = "Test"
TimeAreaObj@gtg = 13
TimeAreaObj@areas = 2
TimeAreaObj@recArea = c(0.99, 0.01)
TimeAreaObj@iterations = 100
TimeAreaObj@historicalYears = 10
TimeAreaObj@historicalBio = 0.5
TimeAreaObj@historicalBioType = "relB"
TimeAreaObj@move <- matrix(c(1,0, 0,1), nrow=2, ncol=2, byrow=FALSE)
TimeAreaObj@historicalEffort<-matrix(1:1, nrow = 10, ncol = 2, byrow = FALSE)The FishSimGTG package allows for accounting for individual variation in growth trajectories by dividing the population into growth-type groups (GTGs), so each age class is divided into a collection of smaller cohorts or GTGs. The gtg slot in TimeAreaObj represents the number of growth-type groups, with a default value of 13.
areas represents the number of areas in the model, and it must be greater than 1, even when a single-area model is desired.
recArea is a vector of length areas. Each element of the vector represents the fraction of recruitment to each area, with the values summing to 1. In this example, 0.99 of the recruitment is assigned to area 1, and 0.01 to area 2, implying that the model is treated similarly to a single-area model.
iterations is the number of iterations to run (i.e., the number of simulations).
historicalYears are the number of years to simulate historical dynamics.
historicalBio is a value grater than 0 and less than 1. The model assumes the population does not start in unfished conditions.
historicalBioTypeis a string, that represents the type of historical biomass state. The options are: “relB” (relative spawning biomass) or “SPR” (Spawning Potential Ratio).
move is a matrix of migration rates of dimensions areas x areas.
historicalEffort is a matrix of nrows = historicalYears and ncols = areas that contains value multipiers of initial equilibrium fishing mortality. In its current form, FishSimGTG is specified such that fishing mortality rate is proportional to fishing effort. Thus, where historical patterns of fishing effort are available, these can be re-scaled as multipliers of the initial equilibrium fishing mortality.
3.2 Life history object
The LifeHistoryObj is an S4 object of the class LifeHistory that holds the description of a life history.
To create a new object of class LifeHistory, use the new() function, as follows:
The user can see the elements or slots of the LifeHistoryObject using the slotNames() function.
## [1] "title" "speciesName" "shortDescription" "L_type"
## [5] "L_units" "Walpha_units" "Linf" "K"
## [9] "t0" "L50" "L95delta" "M"
## [13] "MK" "LW_A" "LW_B" "Tmax"
## [17] "Steep" "R0" "recSD" "recRho"
## [21] "isHermaph" "H50" "H95delta"The user can access the help file for classes by using ? symbol
In the help file, the user will find a description of the LifeHistoryObject and the elements or slots it contains. To populate the rest of the slots of the LifeHistoryObject, the user should start by defining a useful title (title), followed by the scientific name of the species (speciesName). If desired, the user can add a short description (shortDescription) of the object.
LifeHistoryObj@title<-"Kole"
LifeHistoryObj@speciesName<-"Ctenochaetus strigosus"
LifeHistoryObj@shortDescription<-"stock name/location"Then, the user can proceed to populate the rest of the slots as follows:
LifeHistoryObj@Linf<-17.7
LifeHistoryObj@K<-0.423
LifeHistoryObj@t0<- -0.51
LifeHistoryObj@L50<-8.4
LifeHistoryObj@L95delta<-1.26
LifeHistoryObj@M<-0.08
LifeHistoryObj@L_type<-"FL"
LifeHistoryObj@L_units<-"cm"
LifeHistoryObj@LW_A<-0.046
LifeHistoryObj@LW_B<-2.85
LifeHistoryObj@Steep<-0.54
LifeHistoryObj@recSD<-0
LifeHistoryObj@recRho<-0
LifeHistoryObj@isHermaph<-FALSE
LifeHistoryObj@R0<-10000Growth is modeled in the FishSimGTG package using a von Bertalanffy growth curve, where Linf represents the asymptotic length, K the Brody growth rate coefficient (with units in yr\(^{-1}\)), and t0 represents the time or age when the average length was zero.
Maturity parameters are represented by the L50 and L95delta parameters, assuming that maturity is size-dependent and follows a logistic model. The L50 is the length at 50% maturity, and the L95delta is the length increment between L50 and the length at 95% maturity. L95delta must be a value larger than 0.
M, represent the natural mortality rate per year.
L_type represents the method of measuring length. e.g. "TL" for total length or "FL" for fork length. Must be consistent for all length parameters (e.g., Linf, L50, L95delta). L_units, are the units of measure ("cm" is expected). L_units must be consistent for all length parameters (e.g., Linf, L50, L95delta).
LW_A and LW_B are the parameters of the allometric length-weight relationship. Walpha_units (help file-W_units)represents the measurement units of weight and must be consistent with the LW_A and LW_B parameters.
Recruitment is modeled using a Beverton-Holt stock-recruitment relationship, parameterized in terms of steepness (Steep). Values for Steep range between >0.2 to 1. R0 represents the initial number of unfished recruits (positive number). Recruitment process error is generated from a normal distribution with mean zero and standard deviation represented by recSD. Autocorrelation in recruitment deviations in log space are defined by recRho, producing 1-year lagged correlation. recSD and recRho, are non-negative real numbers.
The FishSimGTG package allows for modeling the population dynamics of gonochoristic and protogynous hermaphroditic species. The user will set isHermaph to TRUE when the species is a protogynous hermaphrodite and to FALSE when it is a gonochoristic species. If the species is a protogynous hermaphrodite, the user will need to define two additional parameters: H50 and H95delta. H50 represents the length at which 50% of the population are male, and H95delta represents the length increment between H50 and length at which 95% of the population are male. H95delta must be a value larger than 0.
MK and Tmax are optional parameters. MK represents the M/K ratio (natural mortality divided by von Bertalanffy K coefficient) and is not utilized by FishSimGTG; however, sister R packages such as fishLengthAssess can utilize this parameter as part of length-based stock assessment. To utilize functionality within FishSimGTG, M and K should be specified in separate slots. Tmax is the maximum observed age that defines the plus-group in modeling population dynamics. When Tmax is not specified (the default), the age to which 1% the population survives in an unfished system is used to calculate Tmax. When Tmax is specified, it must take on a quantity equal to or greater than 2.
The FishSimGTG package includes several plotting functions that allow users to explore the simulated life history before proceeding to analysis. The life history schedules can be plotted using the LHwrapper() function. This function displays the plot in the console and also returns all the details of the life history. The user can access the help file for the LHwrapper() function by using the ? symbol (?LHwrapper).

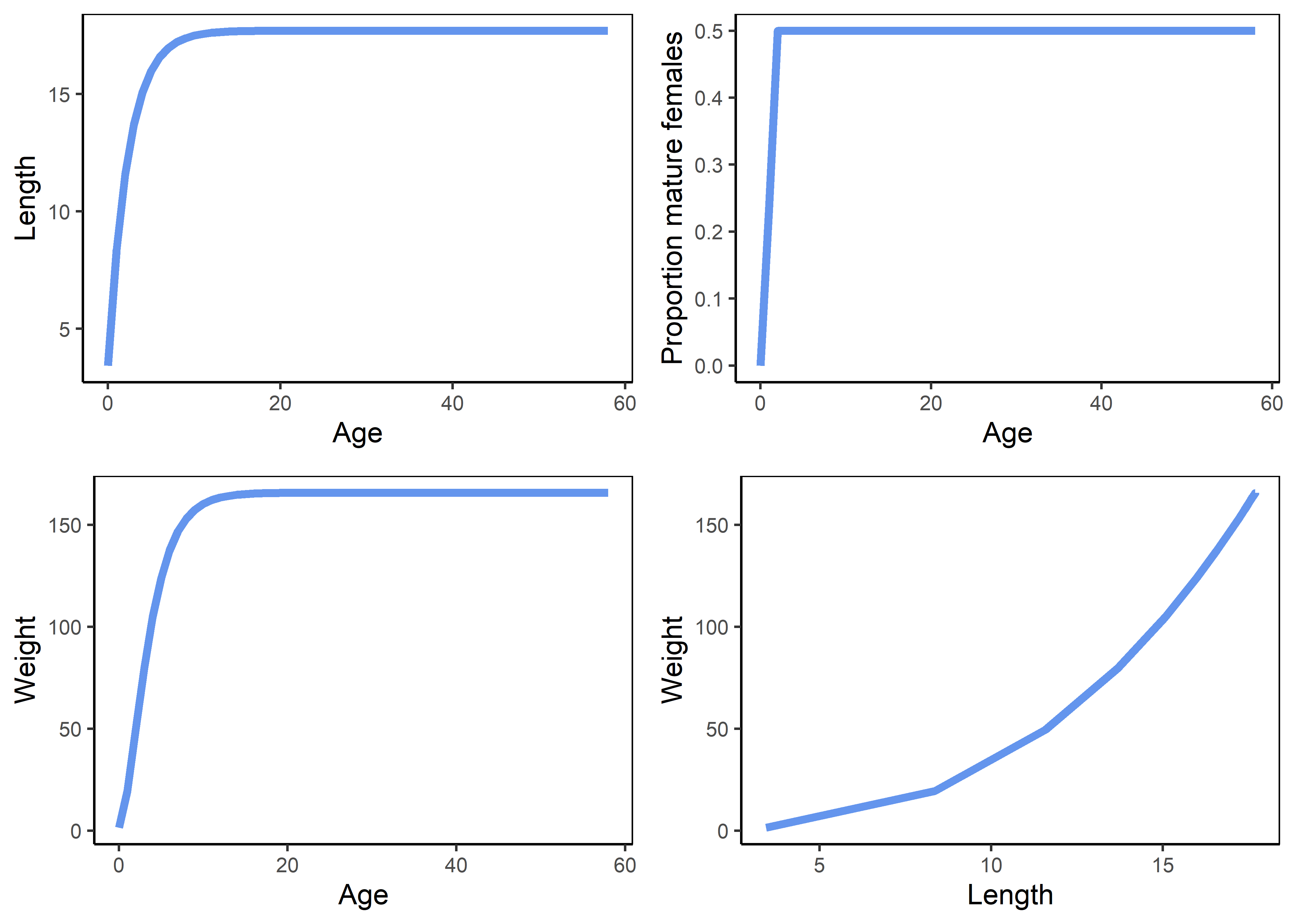

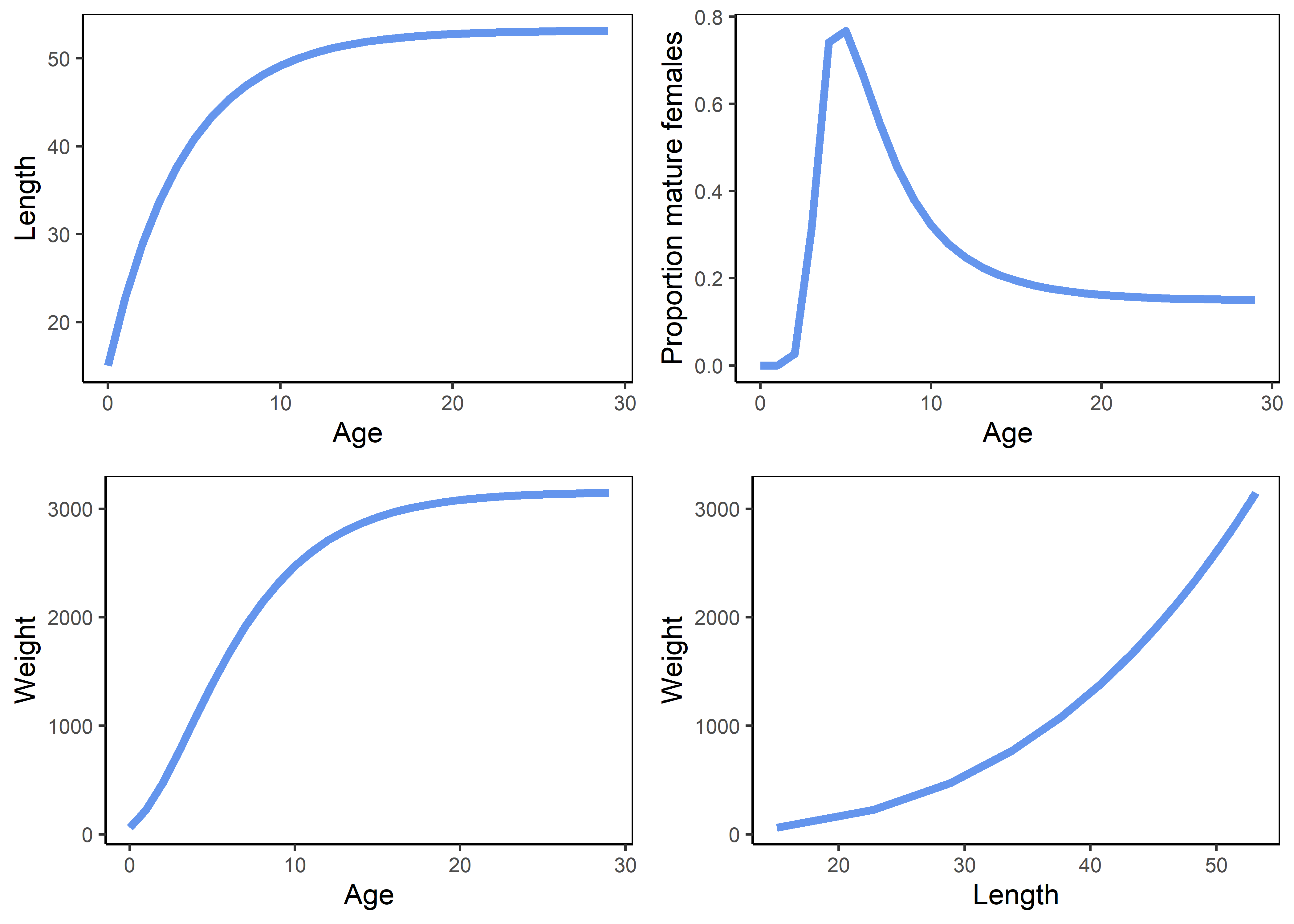

Figure 3.1: Life history schedules.
The upper panels represent the von Bertalanffy growth curve (left) and the maturity ogive (right). The bottom panels represent the weight-at-age relationship and the allometric length-weight relationship.
lhOut returns all the details of the life history.
3.3 Historical fishery object
The HistFisheryObj is an S4 object of the class Fishery that holds fishery characteristics, including vulnerability, retention, and discard information. In its current form, FishSimGTG is specified such that the characteristics defined in the HistFisheryObj apply to all areas. Doing so enables rapid calculation of initial stable age distribution within each area. This structure should be interpreted as the state of the resource prior to any spatial management, or alternatively, as homogeneous fishery characteristics across all areas.
To create a new object of class Fishery, use the new() function, as follows:
The slot names of the HistFisheryObj can be seen using the slotNames() function.
## [1] "title" "vulType" "vulParams" "retType" "retParams" "retMax"
## [7] "Dmort"The user can access the help file using ? symbol
In the help file, the user will find a description of the HistFisheryObj and the elements or slots it contains. To populate the slots, the user should start by defining a meaningful title (title), followed by specifying the selectivity/vulnerability, retention, and discard information.
HistFisheryObj@title<-"Test"
HistFisheryObj@vulType<-"logistic"
HistFisheryObj@vulParams<-c(10.2,0.1) #Approx. knife edge
HistFisheryObj@retType<-"full"
HistFisheryObj@retMax <- 1
HistFisheryObj@Dmort <- 03.3.1 Selectivity
Selectivity or vulnerability is the probability of being selected or becoming vulnerable to the fishing gear. In the FishSimGTG package, selectivity is defined with respect to length, with a maximum value of 1 enforced.
vulType describes the type of selectivity/vulnerability function for the historical time period. The user can see a detailed description of the different selectivity functions by exploring the ?selWrapper function.
Common vulnerability types:
“logistic” selectivity with two parameters (
vulParams) represented by the length at 50% of selectivity and the length increment between the length at 50% of selectivity and the length at 95% selectivity.“explog” is an exponential logistic selectivity (dome-shaped) function, defined by three parameters (
vulParams), represented asc(p1, peak, and p3). To use the “explog” function, the user must first provide the ascending rate (p1), which should be within the range of 0.02 to 1. Next, the user needs to define the peak of the vulnerability function, which corresponds to the location of the peak of the dome-shaped selectivity curve or the length at which selectivity is highest.As an aside, this peak is used to calculate p2, which determines the position of the peak relative to the range of lengths. For example, if the length range is between 1 and 20 cm, and p2 is set to 0.5, the peak will be at 10 cm. Given p2, the peak can be calculated using the following equation:
\[ \text{peak} = \text{min}(\text{Length}) + p_2 \times (\text{max}(\text{Length}) - \text{min}(\text{Length})) \]
p2 must be within the range of 0.01 to 0.9, with a reasonable starting value of 0.5. By adjusting p2, the user can shift the peak along the length range, from the minimum length to the maximum length.
Finally, the user must provide p3, which is the descending rate, and which must be within the range of 0.001 to 0.5. A value of 0.001 provides a nearly asymptotic curve, while values above 0.2 produce a strongly dome-shaped function, where the p3 and p1 parameters interact strongly.
3.3.2 Retention
Retention is the probability of being retained (kept by the fleet) and not discarded. It describes both the shape with respect to length and the maximum value, which can be less than 1. Fish that are selected by the fishing gear but not retained are discarded (discard mortality rate). The probability of being landed (keep), is calculated as Vulnerability × Retention. The user can see a detailed description of the different retention types by exploring the ?selWrapper function.
There are three retention types (retType):
“full” retention assumes that keep is equal to retention. There are no parameters (
retParams) for “full” retention.“logistic” retention has two parameters (
retParams): the length at 50% retention and the length increment to 95% retention.“slotLimit” retention includes two parameters (
retParams): minimum length and maximum length, where catches occur between the minimum and maximum values.
retMax is a numeric value between 0 and 1 that defines the peak of the retention curve.
3.3.3 Discard mortality rate
Discard mortality rate represents the fish that are selected but not retained, and are therefore subject to the discard mortality rate (Dmort). Dmort is the fraction of discards that are killed (e.g., 0.25 means 25% are killed). This value must be between 0 and 1.
3.3.4 Fishery plots
The FishSimGTG package includes several plotting functions that allow users to explore the simulated Vulnerability, retention, keep, dead discards, and removals at length. Fishery characteristics can be plotted using the selWrapper() function. This function displays the plot in the console. The user can access the help file for the selWrapper() function by using the ? symbol (?selWrapper).

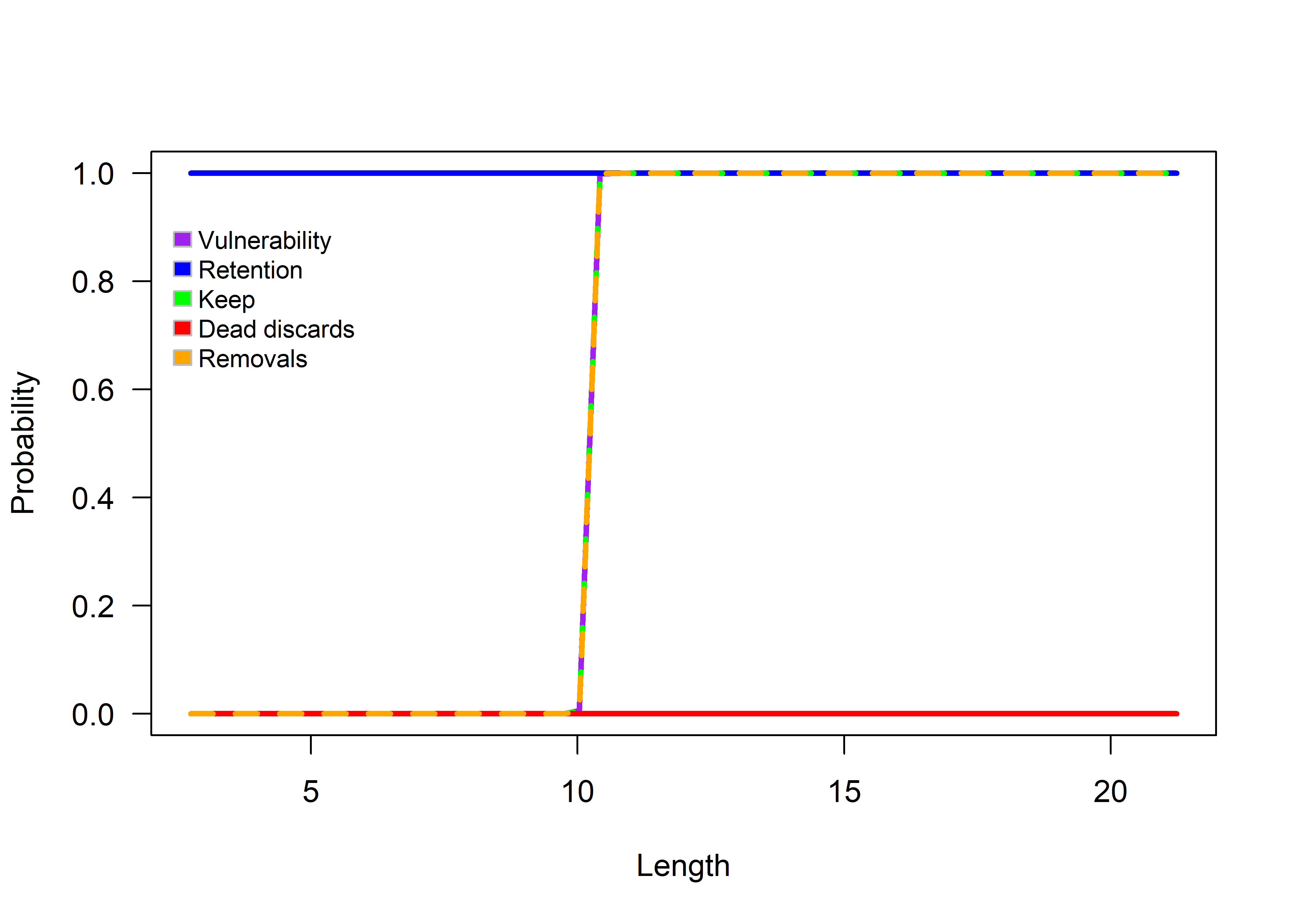

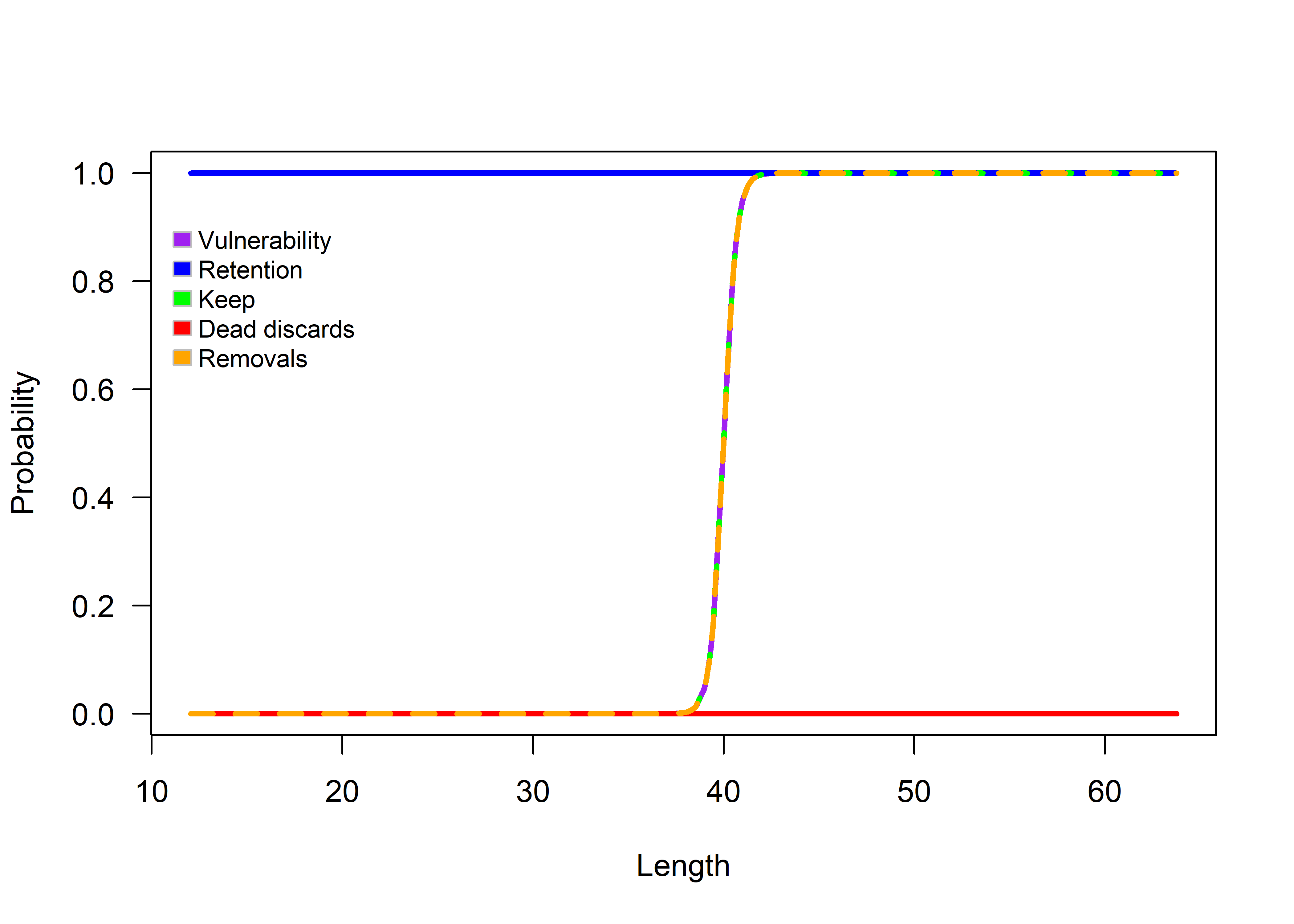

Figure 3.2: Logistic selectivity function.
selOut returns all the details of the fishery selectivity.
If the user modifies the vulnerability, retention, and discard parameters in the HistFisheryObj, other selectivity/vulnerability and retention shapes can be explored. For example:
– Assuming a vulnerability type vulType of “explog”, with parameters p1, peak, and p3.
HistFisheryObj@vulType<-"explog"
HistFisheryObj@vulParams<-c(0.9,10,0.15) #dome-shaped
HistFisheryObj@retType<-"full"
HistFisheryObj@retMax <- 1
HistFisheryObj@Dmort <- 0
selOut<-selWrapper(lh = lhOut, TimeAreaObj, FisheryObj = HistFisheryObj, doPlot = TRUE)

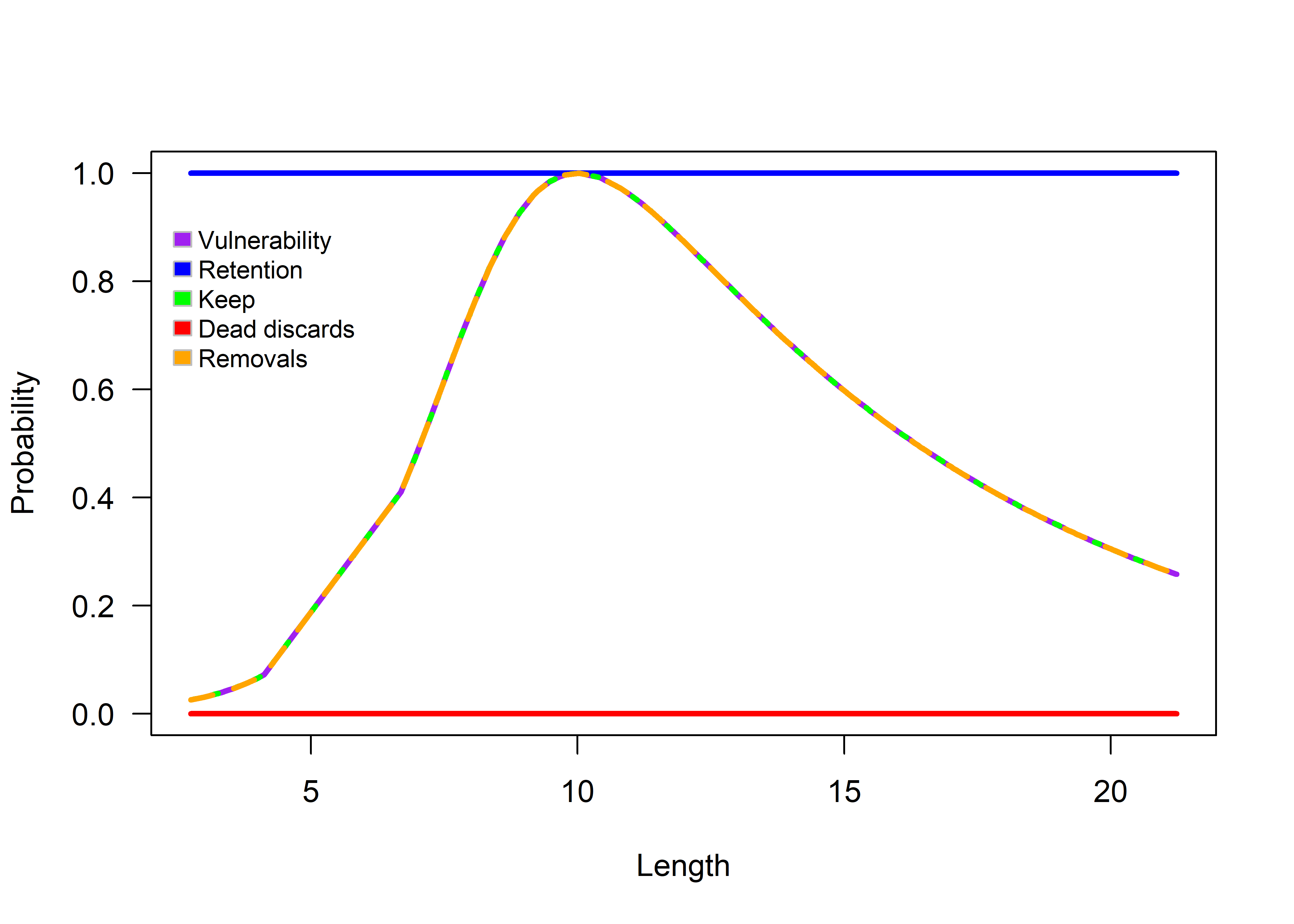

Figure 3.3: Exponential logistic selectivity (dome-shaped).
– Assuming a vulnerability type vulType of “logistic”, with changes in the retention type (retType) and retention parameters (retParams).
HistFisheryObj@vulType<-"logistic"
HistFisheryObj@vulParams<-c(10.2,0.1) #Approx. knife edge
HistFisheryObj@retType<-"logistic"
HistFisheryObj@retParams<-c(11,0.8)
HistFisheryObj@retMax <- 1
HistFisheryObj@Dmort <- 0
selOut<-selWrapper(lh = lhOut, TimeAreaObj, FisheryObj = HistFisheryObj, doPlot = TRUE)

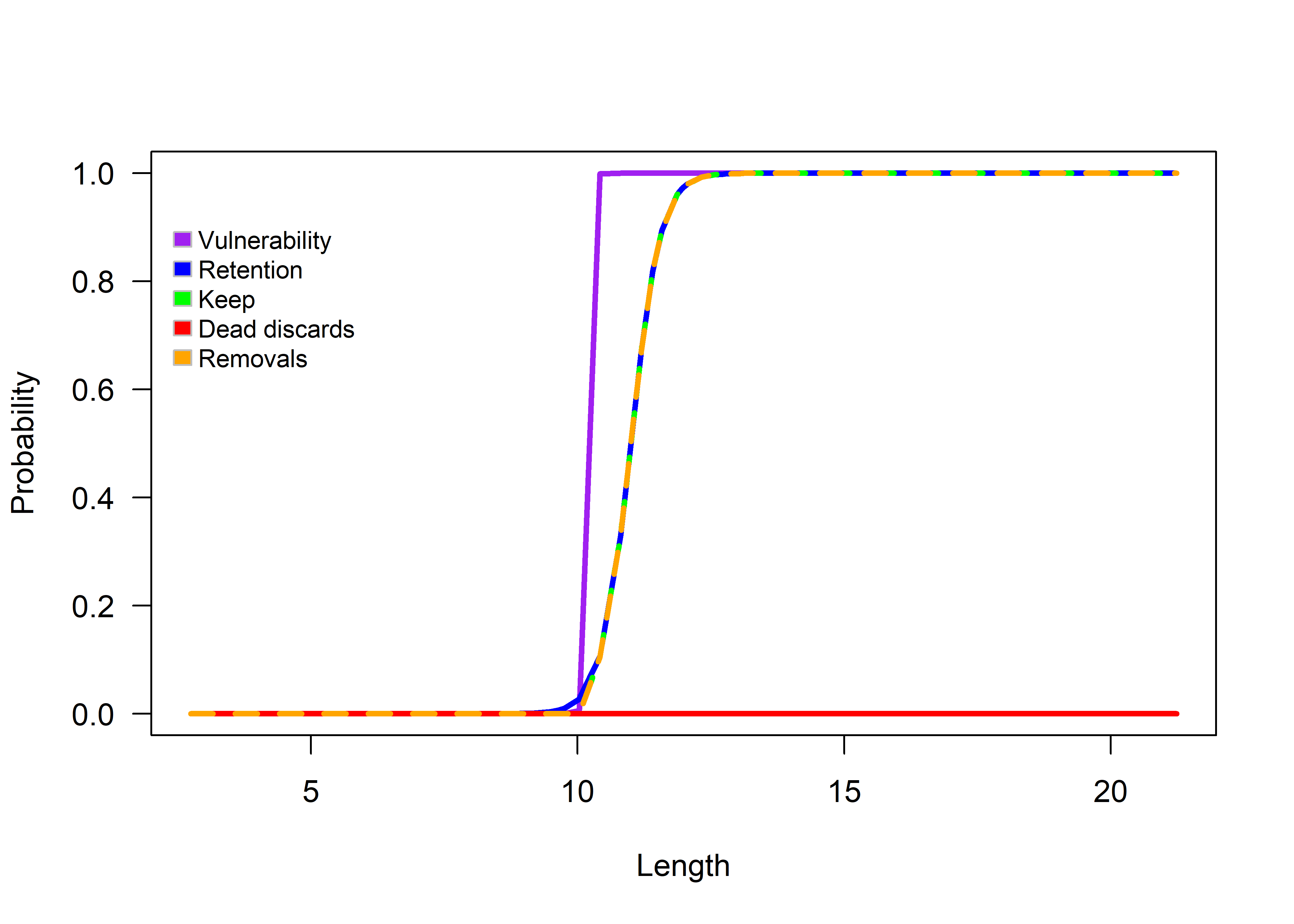

Figure 3.4: Logistic selectivity function with different retention parameters.
3.4 Stochastic object
The StochasticObj is used as a catch-all object for specifying magnitude of variation in input parameters, in two ways. Its first usage, and technically poor use of the term ‘stochastic’, is to represent a modeling approach that accounts for uncertainty in various input parameters (e.g., initial depletion, life history, selectivity, and annual recruitment deviations). Its second usage is to represent inter-annual variation (not yet implemented, except for recruitment deviations that are specified within a LifeHistoryObject).
The StochasticObj holds the parameters for characterizing uncertainty about population and fishery dynamics.
To create a new object of class Stochastic, use the new() function.
Similar to other S4 objects, the slot names of StochasticObj can be viewed using the slotNames() function, and the help file can be accessed using the ? symbol.
## [1] "title" "historicalBio" "Linf"
## [4] "K" "L50" "L95delta"
## [7] "M" "Steep" "recSD"
## [10] "recRho" "H50" "H95delta"
## [13] "histFisheryVul" "proFisheryVul_list" "sameFisheryVul"
## [16] "histFisheryRet" "proFisheryRet_list" "sameFisheryRet"
## [19] "histFisheryDmort" "proFisheryDmort_list" "sameFisheryDmort"To populate the slots of StochasticObj, the user should begin by defining a meaningful title (title) and specifying the parameters in which they want to include variation.
The slots defined in the StochasticObj object create additional inputs and override parameters specified elsewhere (e.g., LifeHistoryObj, HistFisheryObj, or TimeAreaObj), allowing the corresponding model components to become random processes. Values for these components are generated ahead of simulation and retained to ensure reproducibility of results. See documentation of runProjection() for details.
In the following example, we add uncertainty to historicalBio. As state of depletion can be uncertain, initial depletion can be implemented as a range of plausible values, producing slightly different values for each iteration. This is achieved by assignubg a vector of length 2 that contains the lower and upper bounds of a uniform distribution to the slot StochasticObj@historicalBio. Doing so will override (replace) the quantity defined in the TimeAreaObj object (TimeArea@historicalBio). For each iteration, one value is drawn from a uniform distribution. Importantly, TimeArea@historicalBioType continues to determine the type of historical biomass state (e.g., ‘relB’ or ‘SPR’).
3.4.1 Uncertainty in life history
All scalar parameters in the LifeHistoryObj object that hold a single value, such as Linf, K, L50, L95delta, M, Steep, recSD, recRho, H50, and H95delta, can be redefined in the StochasticObj object. When redefined, they are replaced by a vector of length 2 containing the minimum and maximum values. If provided, these values override those in the LifeHistoryObj, and a unique value for each iteration is generated by sampling from the uniform distribution.
3.4.2 Uncertainty in the historical fishery
A matrix with \(n\) columns and 2 rows is used to define the range of uncertainty for the vulnerability (vulParams) and retention (retParams) parameters from the HistFisheryObj in the StochasticObj object. Row 1 contains the minimum values, and row 2 contains the maximum values for each parameter, corresponding to the respective column \(n\).
When this matrix is provided in the StochasticObj object, it replaces the vulParams and retParams slots previously defined in the HistFisheryObj. This ensures that the columns of the matrix align with the required inputs for vulType and retType in the HistFisheryObj object.
The same logic applies to redefining the Dmort parameter, but in this case, the matrix contains only 1 column and 2 rows (min and max), as the Dmort parameter is a scalar. When this matrix is provided, it replaces the Dmort slot in the HistFisheryObj.
#just to continue with the original configuration of sel and retention
HistFisheryObj@vulType<-"logistic"
HistFisheryObj@vulParams<-c(10.2,0.1) #Approx. knife edge
HistFisheryObj@retType<-"full"
HistFisheryObj@retMax <- 1
HistFisheryObj@Dmort <- 0
StochasticObj@histFisheryVul=matrix(c(9,11,0.07,0.13), nrow=2, ncol=2,byrow=FALSE) #e.g., adding stochasticity to histFisheryVulThere are additional slots in the StochasticObj object that modify fishery projections (ProFisheryObj), which will be described in detail in a separate section.
